Daim Ntawv Yob Slitter Rewinder Tshuab



Daim Ntawv Yob Slitter Rewinder Tshuab

Lub tshuab slitting no yog tsim rau slitting yas zaj duab xis xws li BOPP, PET, CPP, PVC, ntawv, txhuas ntawv ci thiab lwm yam yob hom khoom.Lub tshuab no tuaj yeem hlais jumbo yob rau yob me me raws li cov neeg siv khoom xav tau.





1.Lub unwinding thiab rewinding nyob rau tib sab

2.Automatic recitfy nyob rau hauv unwinding, photocell qhov muag tuaj yeem taug qab cov ntawv luam tawm thiab pob tshab

3.Unwinding thiab rewinding siv airshaft, yooj yim rau thauj khoom thiab unload cov khoom.(Kev xaiv: kev sib txhuam ncej), nro siv tsis siv neeg nro tswj

4.Rewinding ncej adpots kab rov tav rotary hom, ob chav ncej tsim, ib tus neeg tuaj yeem yooj yim rau kev khiav lag luam

5.Siv tus kws kho mob hniav (kev xaiv: rotary hniav)

6.Micro-computer tswj, tsis siv neeg tso cov khoom siv sab nraud

7. Tsis siv neeg suav, thaum ncav cuag lub ntsuas ntsuas, tuaj yeem nres nres

8.Tag nrho cov yob ntawm lub tshuab tuaj yeem kho tau, txhawm rau tshem tawm cov vetical thiab kab rov tav sib txawv.

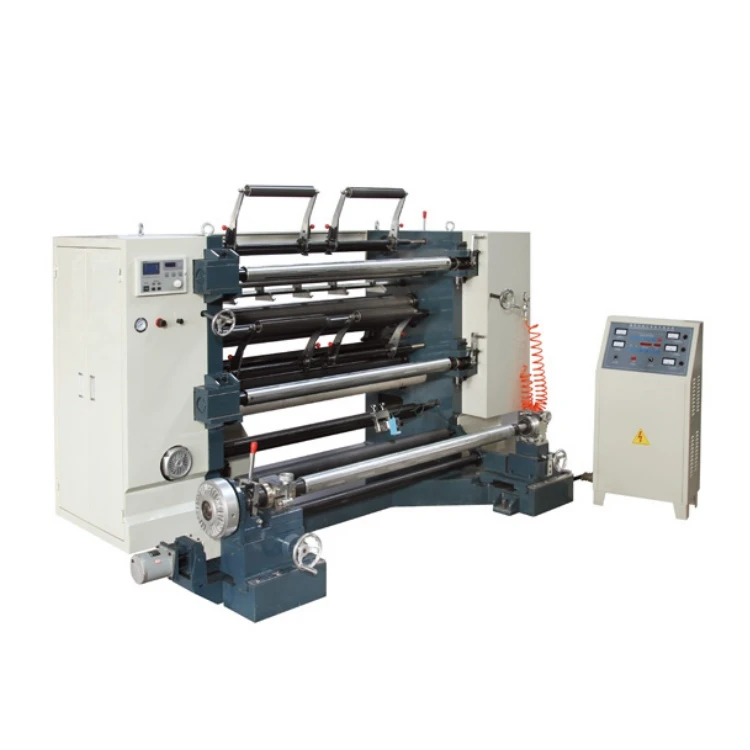

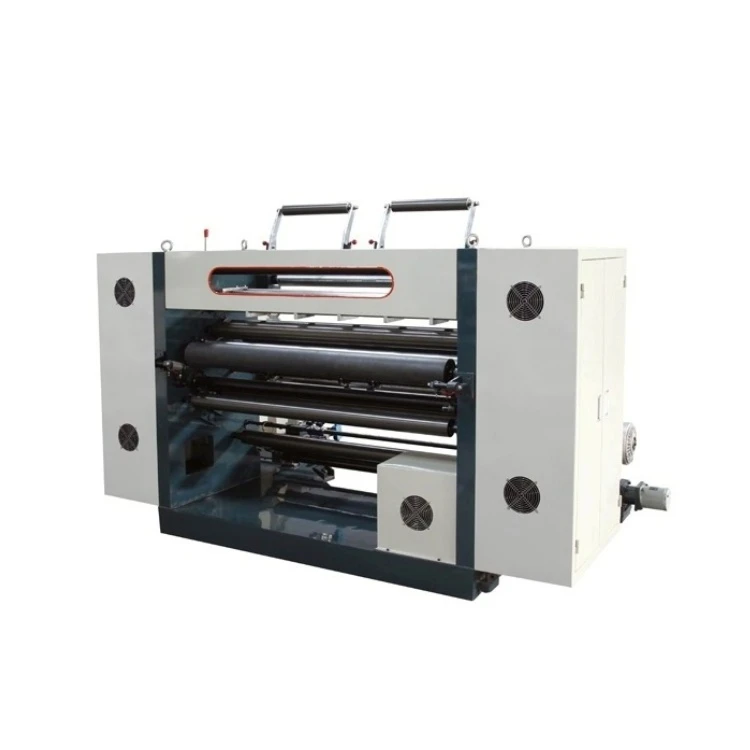

                                                             WFQB Daim Ntawv Yob Slitter Rewinder Tshuab



Hom WFQ-B1000 WFQ-B1300 Max dav ntawm cov khoom 1000 hli 1300 hli Max txoj kab uas hla ntawm unwinding Φ600 hli Φ600 hli Max txoj kab uas hla ntawm rewinding Φ450 hli Φ450 hli Scope ntawm slitting 30-1000 hli 30-1300 hli Thickness ntawm cov khoom 10-75μm (tus kws kho mob hniav) 10-75μm (tus kws kho mob hniav) Slitting ceev 220m / min 220m / min Kho precision ± 0.3 hli ± 0.3 hli Tag nrho lub zog 4.8kw 4 4.8kw 4 Zuag qhia tag nrho demensions 2800 * 1400 * 1500 hli 2800 * 1600 * 1500 hli hnyav 2700kg ib 2800kg ib Qhov tseeb specifications nyob ntawm tus qauv tiag tiag. Txhua qhov kev qhia tshwj xeeb yuav hloov pauv yam tsis tau ceeb toom ua ntej.
